Special offers PS-1048

Insulated Wall Panels | 60mm | open fixings | B-grade

Price / m²
CAD 32.63
  • Available quantity: 72
  • Length: 10.88 m - 10.88 m
  • Width: 1 m
 Your Enquiry for Special Offer
Wall
Wall
72 pcs.
VE 12

Special offer details

783m² in stock! Colour: RAL 9006 white aluminium

Price ex-UK

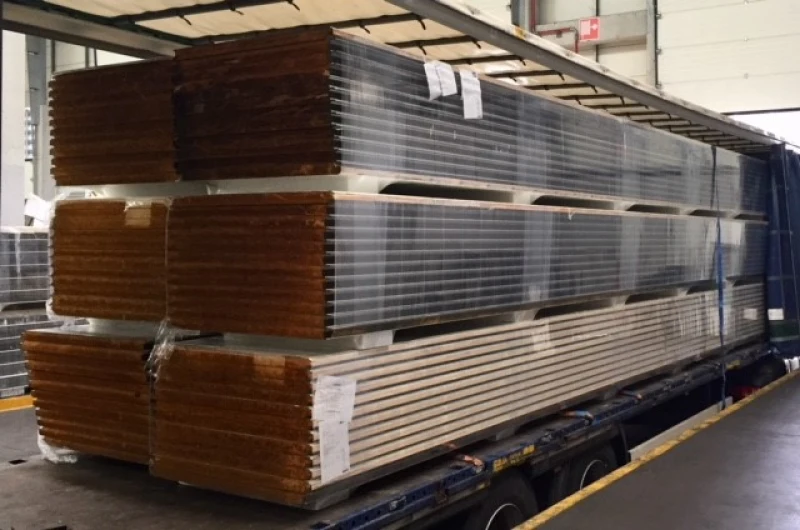

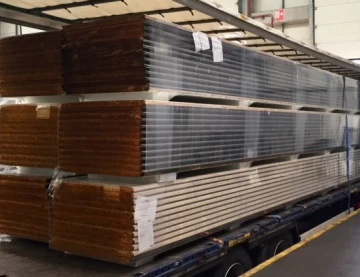

Insulated wall panels with open fixings | B-grade

Thickness: 60mm
Colour: RAL 9006/9010
Steel sheets: 0.5/0.4
Width: 1000mm
Profile: Micro / Eurobox

The panels can be used as:

  • ceiling / false ceiling
  • wall cladding
  • ceiling suspension / ceiling lining

The price applies to purchases of over 260m²!

Delivery UK & Ireland wide.
Price excludes VAT and delivery.

KOOL

Package information

Quantity Length Width Area (sqm) Colour (both sides)
12 10.88 m 1 m 130.56 m² RAL 9006
12 10.88 m 1 m 130.56 m² RAL 9006
12 10.88 m 1 m 130.56 m² RAL 9006
12 10.88 m 1 m 130.56 m² RAL 9006
12 10.88 m 1 m 130.56 m² RAL 9006
12 10.88 m 1 m 130.56 m² RAL 9006

panel sell North America

U-Value

PIR

Core thickness
[mm]
U-Value
[W/m² K]
30 0.71
40 0.54
50 0.44
60 0.37
80 0.28
100 0.22
120 0.19
150 0.15
180 0.12
200 0.11
220 0.1
240 0.09

Rockwool

Core thickness
[mm]
U-Value
[W/m² K]
50 0.69
60 0.59
80 0.45
100 0.37
120 0.31
140 0.27
160 0.24
180 0.21
200 0.19

PIR

Core thickness
[mm]
U-Value
[W/m² K]
30 0.64
40 0.49
60 0.34
80 0.26
100 0.21
120 0.18
150 0.15

Rockwool

Core thickness
[mm]
U-Value
[W/m² K]
50 0.76
60 0.63
80 0.47
100 0.38
120 0.32
150 0.25
180 0.21
200 0.19

PIR

Core thickness
[mm]
U-Value
[W/m² K]
60 0.37
80 0.26
100 0.21
120 0.18
150 0.14
180 0.12
200 0.11
Weight

PIR

Core thickness
[mm]
Weight
[kg]
40 7.9 - 9.6
60 8.7 - 10.8
80 9.5 - 11.6
100 10.3 - 12.4
120 11.1 - 13.2

Rockwool

Core thickness
[mm]
Weight
[kg]
50 14.6
60 15.6
80 17.6
100 19.6
120 21.6
140 23.6
160 25.6
180 27.6
200 29.6

All information without guarantee for completeness and correctness. Information includes variations in sheet thickness, insulation materials and type of fastening. Technical changes reserved.

PIR

Core thickness
[mm]
Weight
[kg]
30 11.5
40 11.9
50 -
60 12.7
80 13.4
100 14.2
120 14.9

Rockwool

Core thickness
[mm]
Weight
[kg]
30 -
40 -
50 13.9
60 14.9
80 16.9
100 18.9
120 20.9

All information without guarantee for completeness and correctness. Information includes variations in sheet thickness, insulation materials and type of fastening. Technical changes reserved.

PIR

Core thickness
[mm]
Weight
[kg]
80 11.4 - 13.1
100 12.2 - 13.9
120 13 - 14.7
150 14.2 - 15.9
180 15.4 - 17.1
200 16.2 - 17.9

All information without guarantee for completeness and correctness. Information includes variations in sheet thickness, insulation materials and type of fastening. Technical changes reserved.
