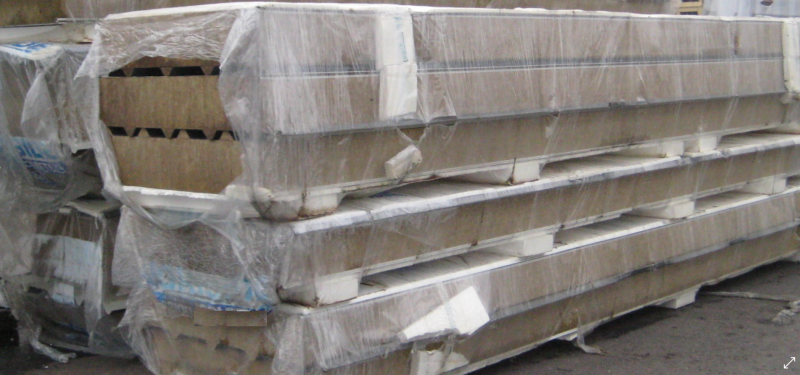

10700mm long x 1000mm wide - RAL 7016 / 9002 - Fire Rated - MIN ORDER 171sqm (16no. panels)
Price ex-UK
Fire Rating a2-s1-d0 / REI 120 minutes
Steel sheet thickness 0.6 / 0.5
| Quantity | Length | Width | Area (sqm) | Colour (both sides) |
|---|---|---|---|---|
| 4 | 10.7 m | 1 m | 42.8 m² | 7016/9002 |
| 4 | 10.7 m | 1 m | 42.8 m² | 7016/9002 |
| 4 | 10.7 m | 1 m | 42.8 m² | 7016/9002 |
| 4 | 10.7 m | 1 m | 42.8 m² | 7016/9002 |
panel sell North America
| Core thickness [mm] | U-Value [W/m² K] |
|---|---|
| 30 | 0.71 |
| 40 | 0.54 |
| 50 | 0.44 |
| 60 | 0.37 |
| 80 | 0.28 |
| 100 | 0.22 |
| 120 | 0.19 |
| 150 | 0.15 |
| 180 | 0.12 |
| 200 | 0.11 |
| 220 | 0.1 |
| 240 | 0.09 |
| Core thickness [mm] | U-Value [W/m² K] |
|---|---|
| 50 | 0.69 |
| 60 | 0.59 |
| 80 | 0.45 |
| 100 | 0.37 |
| 120 | 0.31 |
| 140 | 0.27 |
| 160 | 0.24 |
| 180 | 0.21 |
| 200 | 0.19 |
| Core thickness [mm] | U-Value [W/m² K] |
|---|---|
| 30 | 0.64 |
| 40 | 0.49 |
| 60 | 0.34 |
| 80 | 0.26 |
| 100 | 0.21 |
| 120 | 0.18 |
| 150 | 0.15 |
| Core thickness [mm] | U-Value [W/m² K] |
|---|---|
| 50 | 0.76 |
| 60 | 0.63 |
| 80 | 0.47 |
| 100 | 0.38 |
| 120 | 0.32 |
| 150 | 0.25 |
| 180 | 0.21 |
| 200 | 0.19 |
| Core thickness [mm] | U-Value [W/m² K] |
|---|---|
| 60 | 0.37 |
| 80 | 0.26 |
| 100 | 0.21 |
| 120 | 0.18 |
| 150 | 0.14 |
| 180 | 0.12 |
| 200 | 0.11 |
| Core thickness [mm] | Weight [kg] |
|---|---|
| 40 | 7.9 - 9.6 |
| 60 | 8.7 - 10.8 |
| 80 | 9.5 - 11.6 |
| 100 | 10.3 - 12.4 |
| 120 | 11.1 - 13.2 |
| Core thickness [mm] | Weight [kg] |
|---|---|
| 50 | 14.6 |
| 60 | 15.6 |
| 80 | 17.6 |
| 100 | 19.6 |
| 120 | 21.6 |
| 140 | 23.6 |
| 160 | 25.6 |
| 180 | 27.6 |
| 200 | 29.6 |
All information without guarantee for completeness and correctness. Information includes variations in sheet thickness, insulation materials and type of fastening. Technical changes reserved.
| Core thickness [mm] | Weight [kg] |
|---|---|
| 30 | 11.5 |
| 40 | 11.9 |
| 50 | - |
| 60 | 12.7 |
| 80 | 13.4 |
| 100 | 14.2 |
| 120 | 14.9 |
| Core thickness [mm] | Weight [kg] |
|---|---|
| 30 | - |
| 40 | - |
| 50 | 13.9 |
| 60 | 14.9 |
| 80 | 16.9 |
| 100 | 18.9 |
| 120 | 20.9 |
All information without guarantee for completeness and correctness. Information includes variations in sheet thickness, insulation materials and type of fastening. Technical changes reserved.
| Core thickness [mm] | Weight [kg] |
|---|---|
| 80 | 11.4 - 13.1 |
| 100 | 12.2 - 13.9 |
| 120 | 13 - 14.7 |
| 150 | 14.2 - 15.9 |
| 180 | 15.4 - 17.1 |
| 200 | 16.2 - 17.9 |
All information without guarantee for completeness and correctness. Information includes variations in sheet thickness, insulation materials and type of fastening. Technical changes reserved.
