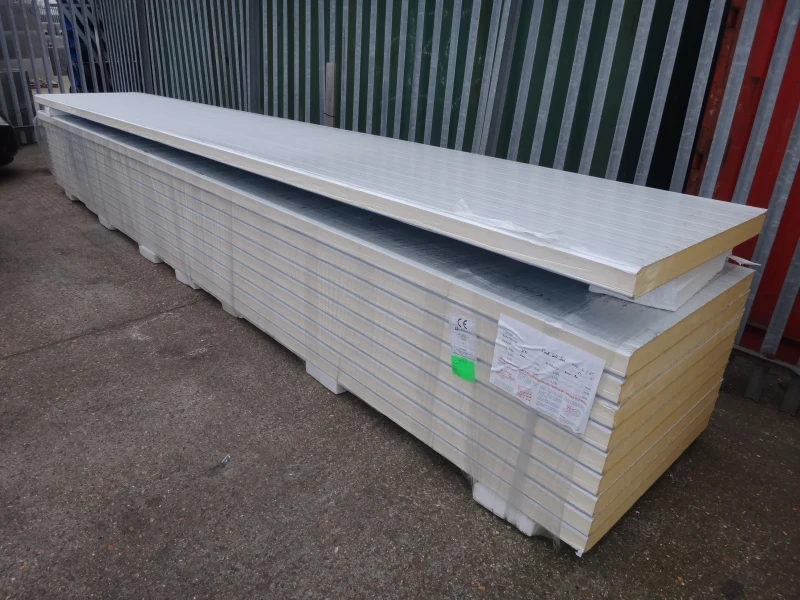

6m & 7.5m lengths, 1m wide
Price ex-UK
PUR (Polyurethane) Insulation, PIR (Polyisocyanurate) available on request
Colour RAL9010 white both sides
Lengths 6m & 7.5m, width 1m
Price valid if you order 1 pack minimum (9 panels per pack)
Can also produce new panels to your dimensions & colour (closest match)
Flashings, screws & doors also available
Delivery UK & Ireland
Quantity | Length | Width | Area (sqm) | Colour (both sides) |
---|---|---|---|---|
50 | 6 m | 1 m | 300 m² | RAL 9010 (pure white) |
50 | 7.5 m | 1 m | 375 m² | RAL 9010 (pure white) |
panel sell North America
Core thickness [mm] | U-Value [W/m² K] |
---|---|
30 | 0.71 |
40 | 0.54 |
50 | 0.44 |
60 | 0.37 |
80 | 0.28 |
100 | 0.22 |
120 | 0.19 |
150 | 0.15 |
180 | 0.12 |
200 | 0.11 |
220 | 0.1 |
240 | 0.09 |
Core thickness [mm] | U-Value [W/m² K] |
---|---|
50 | 0.69 |
60 | 0.59 |
80 | 0.45 |
100 | 0.37 |
120 | 0.31 |
140 | 0.27 |
160 | 0.24 |
180 | 0.21 |
200 | 0.19 |
Core thickness [mm] | U-Value [W/m² K] |
---|---|
30 | 0.64 |
40 | 0.49 |
60 | 0.34 |
80 | 0.26 |
100 | 0.21 |
120 | 0.18 |
150 | 0.15 |
Core thickness [mm] | U-Value [W/m² K] |
---|---|
50 | 0.76 |
60 | 0.63 |
80 | 0.47 |
100 | 0.38 |
120 | 0.32 |
150 | 0.25 |
180 | 0.21 |
200 | 0.19 |
Core thickness [mm] | U-Value [W/m² K] |
---|---|
60 | 0.37 |
80 | 0.26 |
100 | 0.21 |
120 | 0.18 |
150 | 0.14 |
180 | 0.12 |
200 | 0.11 |
Core thickness [mm] | Weight [kg] |
---|---|
40 | 7.9 - 9.6 |
60 | 8.7 - 10.8 |
80 | 9.5 - 11.6 |
100 | 10.3 - 12.4 |
120 | 11.1 - 13.2 |
Core thickness [mm] | Weight [kg] |
---|---|
50 | 14.6 |
60 | 15.6 |
80 | 17.6 |
100 | 19.6 |
120 | 21.6 |
140 | 23.6 |
160 | 25.6 |
180 | 27.6 |
200 | 29.6 |
All information without guarantee for completeness and correctness. Information includes variations in sheet thickness, insulation materials and type of fastening. Technical changes reserved.
Core thickness [mm] | Weight [kg] |
---|---|
30 | 11.5 |
40 | 11.9 |
50 | - |
60 | 12.7 |
80 | 13.4 |
100 | 14.2 |
120 | 14.9 |
Core thickness [mm] | Weight [kg] |
---|---|
30 | - |
40 | - |
50 | 13.9 |
60 | 14.9 |
80 | 16.9 |
100 | 18.9 |
120 | 20.9 |
All information without guarantee for completeness and correctness. Information includes variations in sheet thickness, insulation materials and type of fastening. Technical changes reserved.
Core thickness [mm] | Weight [kg] |
---|---|
80 | 11.4 - 13.1 |
100 | 12.2 - 13.9 |
120 | 13 - 14.7 |
150 | 14.2 - 15.9 |
180 | 15.4 - 17.1 |
200 | 16.2 - 17.9 |
All information without guarantee for completeness and correctness. Information includes variations in sheet thickness, insulation materials and type of fastening. Technical changes reserved.
Did not find the right one?
Constantly available stock at top prices
